The Merida Crossway is a perennial best-seller, delivering a versatile hybrid experience that offers the perfect blend of comfort, enjoyment, and all-around practicality.
Engineered for everyday reliability, this versatile hybrid bicycle is equally at home on daily city commutes or relaxed weekend leisure rides. It features a lightweight aluminum frame designed with a steep, sloping top tube that provides generous standover height for easy mounting. Built for long-term durability, it comes equipped with premium Shimano hubs and a Shimano chainset for a significantly greater lifespan. For ultimate adaptability, the frame is fully ready to be customized with mudguards, cargo racks, and kickstands to match your needs.
Lightweight Aluminum Frame: Agile handling, easy to maneuver, and durable, making it ideal for fitness, commuting, and leisure.
Lockout Suspension Fork: Smooths out rough gravel paths and bumpy city streets, with an integrated lockout switch to maximize efficiency on smooth tarmac.
Versatile 24-Speed Transmission: A wide and reliable 24-gear range that gives you the perfect gearing options for cruising flat streets or tackling hilly terrain.
Hydraulic Disc Brakes: Powerful, high-performance stopping control that delivers total braking confidence and safety in both wet and dry weather conditions.
Comfort Suspension Seatpost: Features built-in micro-suspension travel to absorb unexpected road vibrations and eliminate lower back fatigue.
Adjustable Handlebar Stem: Customizable angle design that allows you to easily raise or lower the handlebars to achieve your perfect upright, ergonomic riding position.

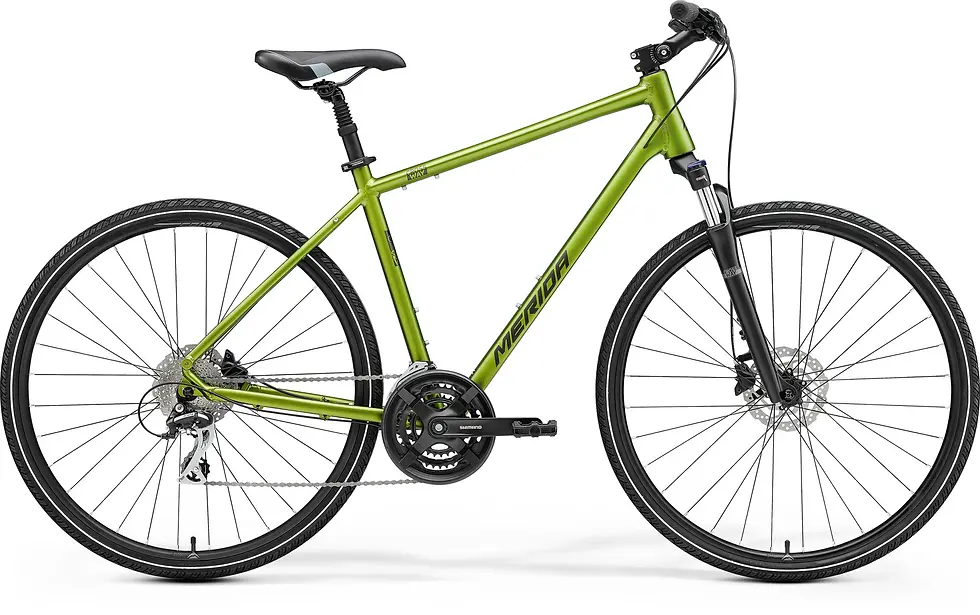

Merida Crossway 20D Front Suspension City Bike
Frame: TFS II 6061 double-butted, technoformed aluminum tubing with clean internal cable routing. Features a tapered head tube, inboard disc mounts, BSA bottom bracket standard, and 135 x 9mm QR axle. Complete with dedicated mounting points for a rear cargo rack, mudguards, and a kickstand. (Max tire clearance: 700 x 50c)
Suspension Fork: Suntour NEX HLO; durable coil spring with 63mm of travel and an integrated lockout switch for maximum pedaling efficiency on smooth roads. (Max tire clearance: 700 x 50c)
Gearing & Drivetrain: Versatile 24-speed transmission controlled by reliable Microshift TS39 shifters, a Shimano FD-TY710 front derailleur, and a smooth-shifting Shimano RD-M359 rear derailleur.
Cassette: Sunrace CSM558AU; 11-32 teeth, 8-speed setup for a broad range of multi-terrain riding options.
Chainset: Shimano TY301 triple chainset with 48-38-28 tooth chainrings. Crank lengths: 170mm (S) or 175mm (M/L).
Bottom Bracket & Chain: FSA TH-7420ST sealed cartridge bearing unit paired with a robust Sunrace M84 chain.
Braking System: Power DS-100HT 2-piston hydraulic disc brake calipers and levers paired with Shimano RT10 160mm Centerlock rotors (front and rear) for exceptional, low-maintenance, all-weather stopping control.
Wheelset & Rims: Double-wall Merida CC aluminum rims (17mm inner width) laced with sleek black steel spokes.
Hubs: Smooth-rolling Shimano TX505 Centerlock hubs (Front: 100x9mm / Rear: 135x9mm) with a durable 32-spoke design.
Tires: High-traction Merida K1171 multi-terrain tires (700x40C) featuring a sturdy wire bead, balancing fast rolling speeds with dependable cornering grip.
Cockpit & Handlebars: Lightweight Merida CC aluminum handlebars (660mm wide, comfort-focused 25mm rise) fitted with comfortable Merida EC grips.
Adjustable Stem: Merida TK aluminum stem (25.4mm clamp diameter) featuring an adjustable angle design to customize your riding geometry. Length: 100mm for all frame sizes.
Comfort Saddle & Seatpost: Ergonomic Merida Cross Sport saddle mounted on a comfort-focused Merida TK seatpost (30.9mm diameter, 13mm setback) featuring 40mm of integrated suspension travel to absorb unexpected road impacts.
Headset & Pedals: Merida M2340 headset and durable VP Components VPE-891 flat platform pedals.
Wheel Size: Standard 700c hybrid wheel size.
Colorway: Premium Gloss Red finish
