The Kuma Bike M1, the ultimate street e-bike meticulously crafted for long-distance adventures. This lightweight and robust frame has been designed with utmost attention to detail, incorporating top-of-the-line components.
The newly introduced M1 features a flawlessly welded frame with integrated front and rear LED lighting, exuding a sleek and modern aesthetic. Furthermore, it offers an optional rear rack equipped with an integrated LED, adding a touch of convenience and style. Setting it apart from the rest, the Kuma Bike M1 incorporates a sleek integrated handlebar display or an in-frame color display with a password lock feature, making it truly stand out.
Our latest range of bikes is powered by cutting-edge 504Wh Samsung batteries, enabling an impressive range of over 100 kilometers on a single charge. The battery is not only removable but also lockable, allowing you to conveniently charge it wherever you please. With our new rapid chargers, a complete charge can be achieved in under 5 hours.
The M1 boasts a game-changing Gates carbon belt drive, a maintenance-free drive train built to endure over 30,000 kilometers without requiring oiling or replacements. Coupled with the rear hub Enviolo/Nuvinci CVT gearing system, this combination ensures a virtually maintenance-free experience. The innovative stepless shifting technology incorporated in the NuVinci® gear system allows seamless gear ratio adjustments with a simple twist of the handlebar shifter, whether you're pedaling under load or coming to a stop.
Powering the M1 is our new Bafang M420 Motor, delivering an impressive 80NM of torque silently. When combined with our new frame and drive train, the M1 surpasses all others in terms of style and value.
Rest assured, Kuma Bikes come with a comprehensive warranty: a 2-year guarantee for the motor and battery, as well as a 5-year guarantee for the frame, providing you with peace of mind and confidence in your investment

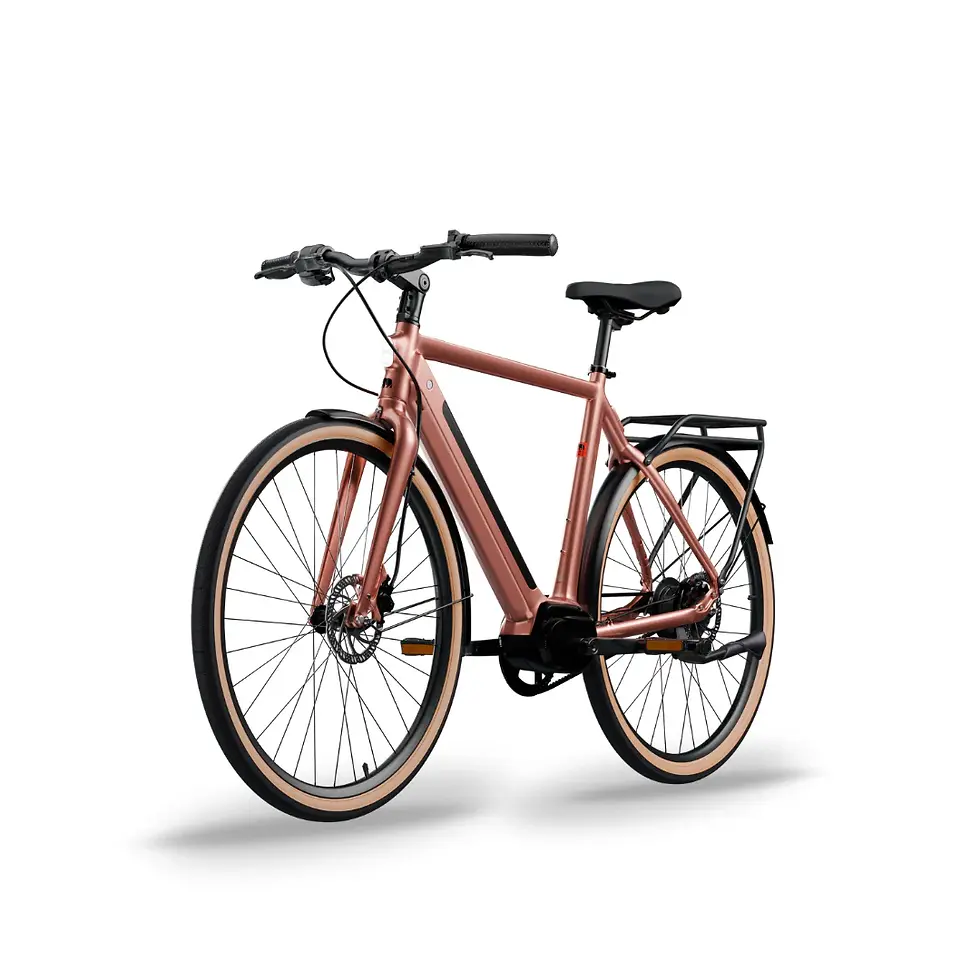

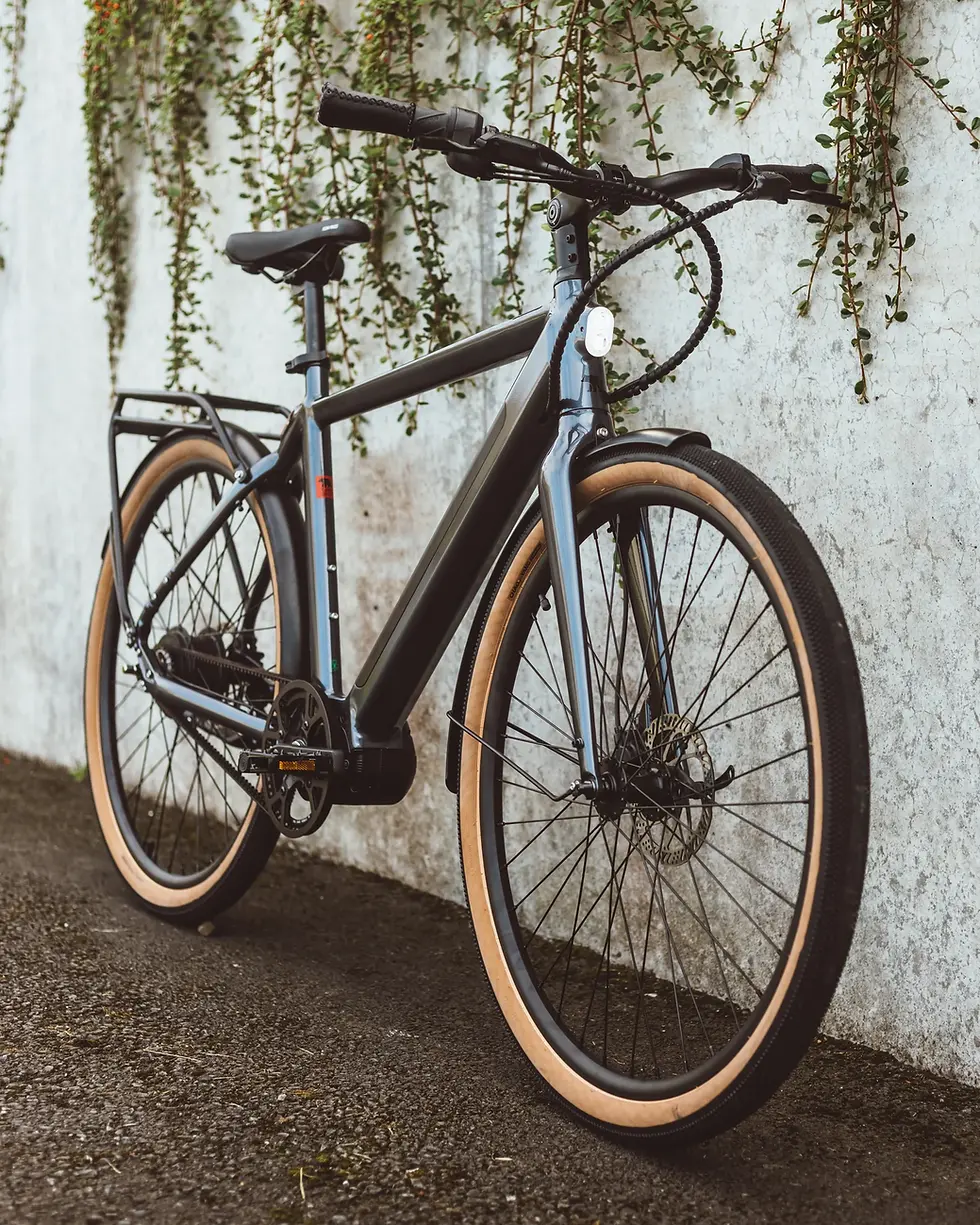

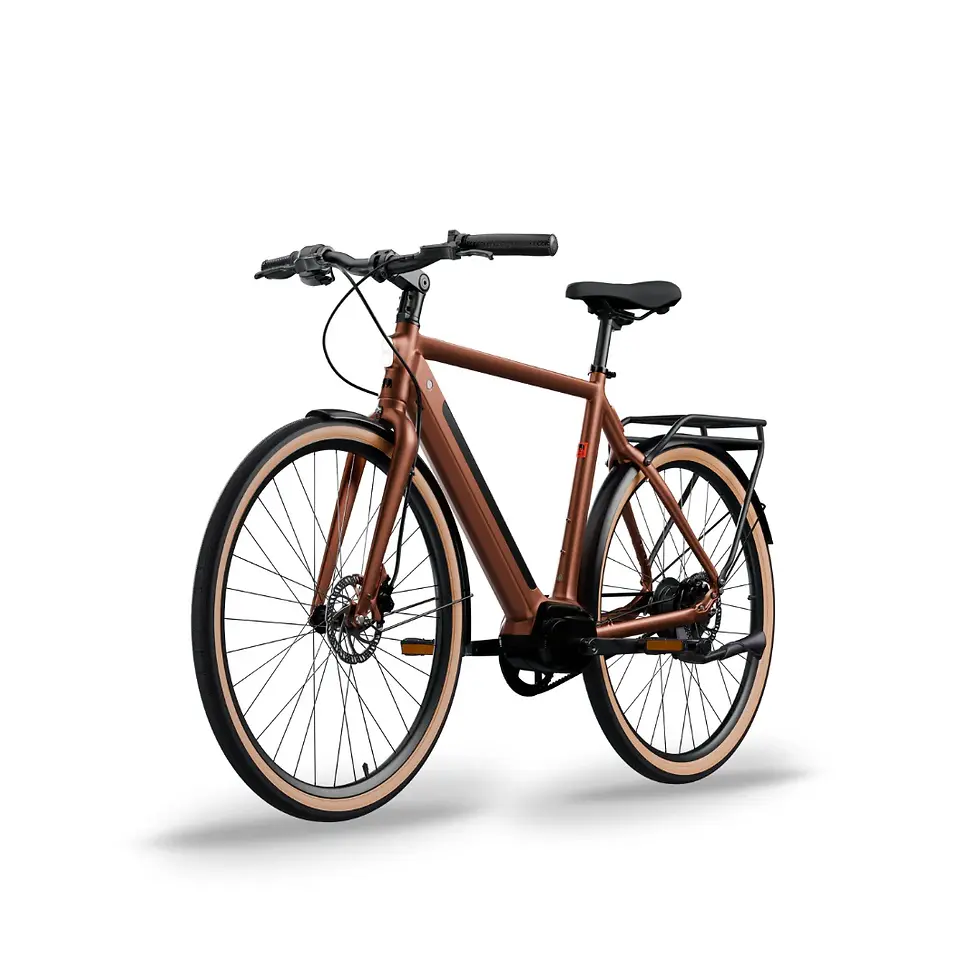

KUMA BIKE M1
SPECIFICATIONS
Motor - Bafang M420 Motor 80nm of Torque
Weight - 23kg
Power - 250 W (EU legal limit) with 80 nm of torque
Pedal Assist Top Speed - 25 km/h or 15.5 mph (EU legal limit)
Battery Type - Samsung Lithium-Ion Cells
Battery Specs - 36 v 14 AH (504Wh)
Max Range - up to 120km (based on power level, average pace, rider weight and even terrain)
Climbing Angle - 25 degrees maximum (based on average rider weight)
Charge Time - 5-7 hours
Display - Colour in frame multi-function top tube display with password lock or Multi-function LCD Integrated handlebar display
Controller - Bafang
Dashboard readouts - Speed (km/h or mph), distance traveled ODO/trip (miles/km), battery level, pedal assistance level, Led headlight (on/off)
Pedal Assist - 5 levels
Frame - Kuma Bikes M1 6061 Aluminium Frame with removable battery
Brakes - Front and rear Tektro TD 825 Hydraulic Disk Brakes
Tyres - Kenda E-Bike Specific tyre 700x40C / Kuma Gumwall Adventure gravel tyre
Wheels - 700cc Double Walled
Drivetrain- Gates Carbon Belt Drive
Gearing- Enviolo Cvt Hub Gearing
Total Approximate Weight Fully Equipped - 23kg
Maximum Recommended Rider Weight - 130kg
Road Legal - Worldwide
Sizing:
MEDIUM: 167cm - 182cm or 5'5'' - 6'
LARGE: 175cm - 210cm or 5'9'' - 6'5''
